Behind the Scenes: The Making of a Reliable BMS

In the realm of battery technology, the Battery Management System (BMS) plays a pivotal role in ensuring the safety, reliability, and efficiency of battery packs. At our company, we take pride in our state-of-the-art BMS production line, where precision meets innovation. Join us on a journey through the meticulous process that brings our BMS from concept to reality.

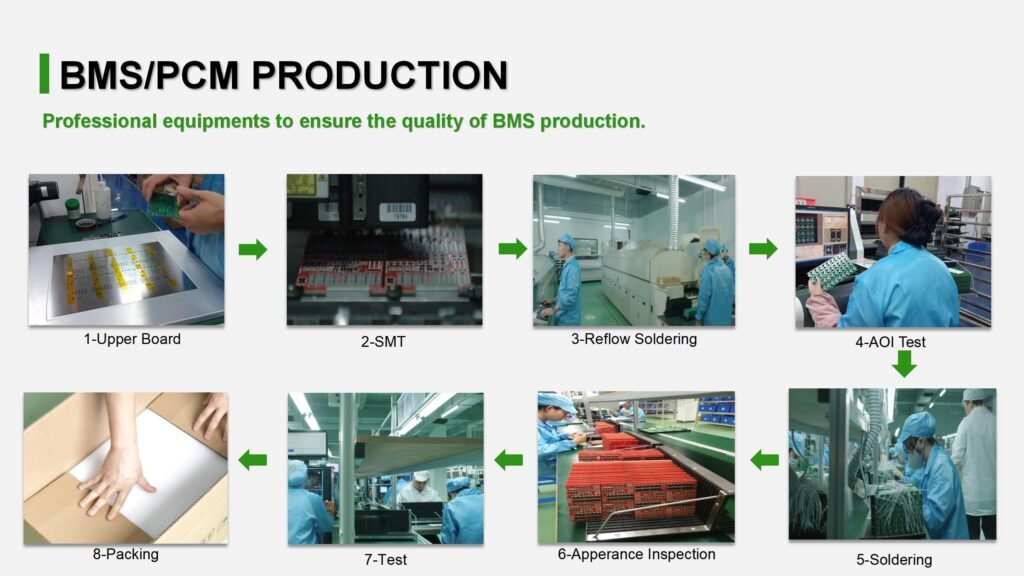

Step 1: Sourcing the Foundation
Our journey begins with the “procurement of PCB baseboards”, the foundation upon which our BMS is built. Designed by our adept engineering team, these baseboards are sourced from suppliers who not only meet but exceed our stringent quality standards and specifications.

Step 2: Precision in Application
As we move along our production line, the next critical step is the application of solder paste. “Precision is key”, and our machines meticulously apply solder paste to designated areas on the baseboards, setting the stage for component attachment.

Step 3: Component Mounting
With the baseboards prepped, we proceeded to “mount the electronic components”. This is where our machines, guided by our detailed designs, carefully place each component onto the baseboard, ensuring perfect alignment and placement.

Step 4: The Reflow Process
The baseboards, now adorned with components, undergo a crucial heating process. Our “reflow oven”—a marvel of machinery—melts the solder paste through a controlled temperature profile, creating a robust bond between the components and the baseboards.

Step 5: Ensuring Solid Connections
To guarantee flawless connections, we subject the baseboards to a second soldering process. The “reflow soldering machine” ensures there are no defects or gaps, producing a smooth and uniform joint across all connections.

Step 6: Rigorous Inspection
Quality is non-negotiable. Each baseboard is inspected by our “AOI machine”, which employs automated optical inspection to detect any soldering errors, misalignments, or potential short circuits.


Step 7: The Human Touch

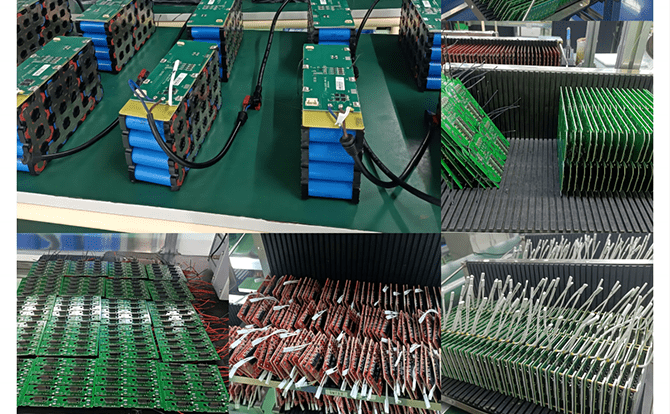

Some connections require a personal touch. Skilled technicians step in to “manually solder parts” like wires, connectors, and sensors, completing the assembly with precision that machines can’t replicate.

Step 8: Testing for Perfection
Before our BMS can leave the production line, they must pass rigorous testing. “Software tests” ensure seamless communication with the battery pack, while “hardware tests” affirm the BMS’s ability to safeguard against electrical mishaps.

Step 9: Aesthetic and Protective Coating
Our BMS products receive a coat of “paint water”, applied by a spray painting machine. This coating not only enhances the visual appeal but also provides a shield against corrosion, moisture, and dust.

Step 10: Packaging with Care
The final step in our production process is packaging. Our BMS products are carefully prepared for shipping, ensuring they arrive at our customers’ doorstep in pristine condition.

Through each of these ten steps, we maintain an unwavering commitment to quality and innovation.Our BMS production is more than just a process; it’s a testament to our dedication to powering the future, one BMS at a time.
